WORLD LEADING MANUFACTURER of PILLOW PACKAGING SYSTEMS
FOR HOT MELT PSA, POLYMERS & TACKY PRODUCTS
NOW - TURNKEY SYSTEM FROM THE REACTOR TO THE FILLING UNIT
FROM 250 TO 2 000 KG/HR (550 TO 4 450 LBS/HR)
|

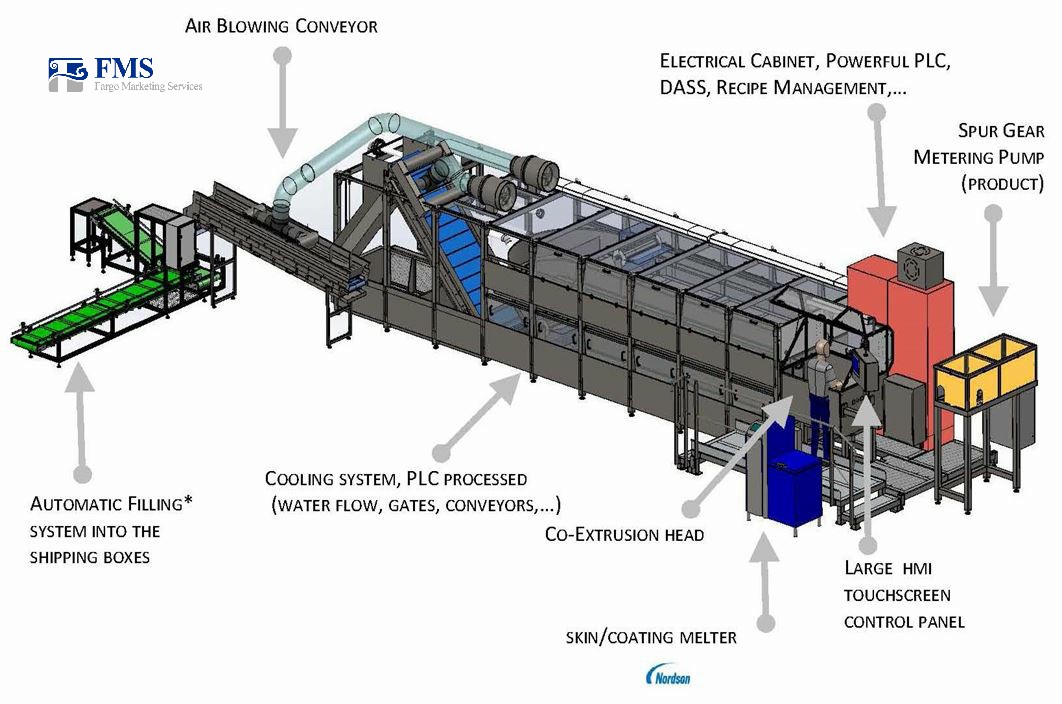

FEATURES & BENEFITS OF THE CO-EXTRUSION PROCESS
?* For Automatic bulk Filling in the shipping boxes, Max pillows weight = 70gr (2,50 oz.). Rotating table available for larger pillows *
 |
 |
ADHESIVESReactor and Holding Tank Product filter (Screen Changer, hydraulic shifting) Heat exchanger to optimize your product workflow |
COOLING SYSTEMWater tank insulation, to reduce chilling power and avoid condensation Water plates exchanger & pump (connected to your existing water chilling unit) Water chilling unit, dedicated to your JPB line |
 |
|
ELECTRONICS – AUTOMATISMPLC Remote Maintenance (internet access) Data Acquisition & Storage System (DASS), to perform production traceability Recipe management, to record and recall your adhesives set points Video Process Recorder Air-conditioning (electrical cabinet) |
| MODELS | DESCRIBE | S250.3(1) | S500.3(1) | S750.3(1) | S1000.3 | S1200.3 | S1500.3 |
| CAPACITY | DESCRIBE | 550 LBS/HR | 1,100 LBS/HR | 1,650 LBS/HR | 2,200 LBS/HR | 2,650 LBS/HR | 3,300 LBS/HR |
| PILLOW WEIGHT APPROX. | PILLOW LENGTH APPROX. | ||||||
| 40 - 50 GR(2) | 50 TO 120 MM | STANDARD | STANDARD | STANDARD | STANDARD | ||
| 150 TO 400 GR | 90 TO 160 MM | STANDARD | STANDARD | STANDARD | STANDARD | ||
| 400 TO 800 GR | 140 TO 220 MM | STANDARD | STANDARD | STANDARD | STANDARD | ||
| 500 TO 1000 GR | 180 TO 260 MM | STANDARD | STANDARD | STANDARD | |||
| APPROX DIMENSIONS (m) Length x Width x Height | (WITHOUT THE PACKAGING UNIT)(3) | 12 X 1 X 3 | 12 TO 15 X 2 X 3 | 15 TO 18 X 2 X 3 | 15 TO 21 X 2 X 3 | 24 TO 30 X 2 X 3 | 30 TO 33 X 2 X 3 |
| USUAL VISCOSITY RANGE AT THE CO-EXTRUSION HEAD (CPS – MPAS) | 3.000 TO 70.000 CPS –MPAS (LOWER AND HIGHER VISCOSITIES ARE ALSO POSSIBLE :PLEASE CONTACT US) |
(1) Our Model S250.3 can be upgraded on your site to reach 500 kg/hr (1100 lbs/hr)
(2) Possibility with 150 to 400 gr pillow configuration to reach a MINIMUM weight of 60 -70 gr with an additional 2nd tooling
(3) For information purposes and subject to change without prior notice
Professional Projects and Technical Support
FMS has offices in Hong Kong, Shanghai, Shenzhen, Yinchuan, Zibo, Kunming and other places. It has a team of professional mechanical engineers, mechanical designers, industrial automation engineers, electrical engineers, Applied Physics and die designers. It can provide customized services for users in 7X24 hours in conjunction with Shanghai Warehousing Technology Center.
